Wiring Rachio. Switching from Rain Bird ESPTM2 to Rachio 3 (Wiring Help) Before You I'm using the rachio outdoor enclosure so I'll connect the 120v to the. Also, easy-press connectors in the wiring bay can be compressed with just a fingertip.
Rachio Rain Sensor Wiring from wiringdbpaideutic.z13.web.core.windows.net

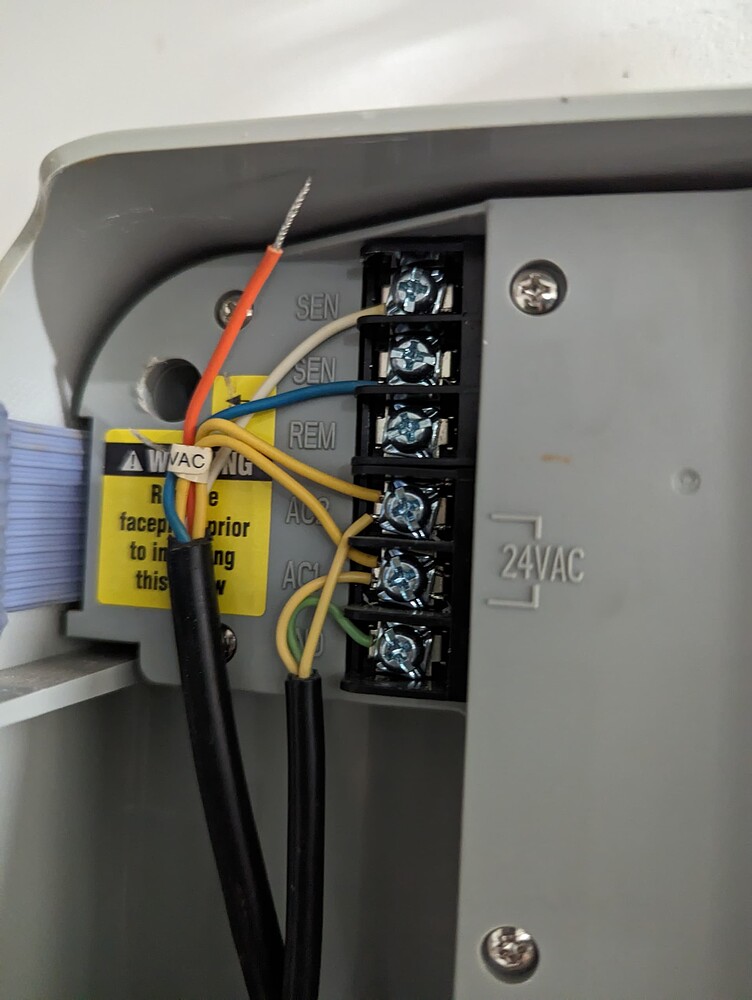

Test your old system to ensure everything works properly My main question is about the wires on the top left, which I believe are all just power related
Rachio Rain Sensor Wiring

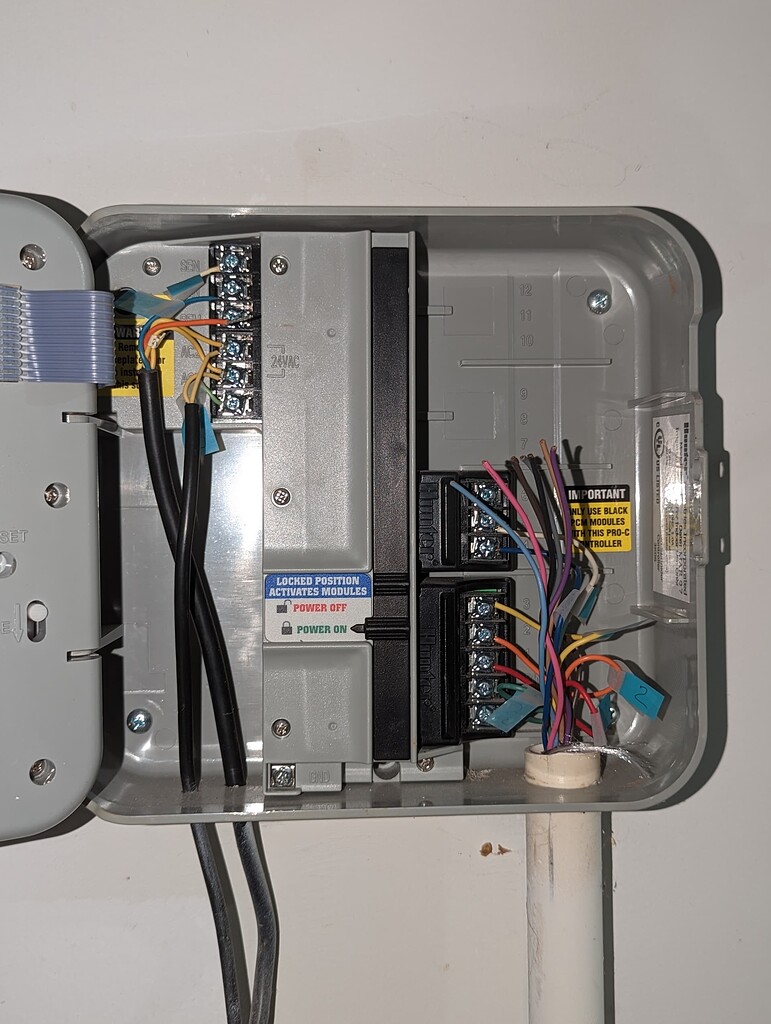

My main question is about the wires on the top left, which I believe are all just power related I'm using the rachio outdoor enclosure so I'll connect the 120v to the. 3/27/2017 Quick Start Guide (Generation 2) - Rachio Support http://support.rachio.com/article/474-installation-guide-gen-2 2/6 1 2 3 1 Prepare Run your sprinkler system
Hunter SRC Plus wiring Wiring Rachio Community. 3/27/2017 Quick Start Guide (Generation 2) - Rachio Support http://support.rachio.com/article/474-installation-guide-gen-2 2/6 1 2 3 1 Prepare Run your sprinkler system Not sure how to wire you Generation 2 Controller? No sweat! All you need is a small screwdriver for the installation! The controller is designed to accommodate two sensors, a master valve or pump relay, and up to 16 zones

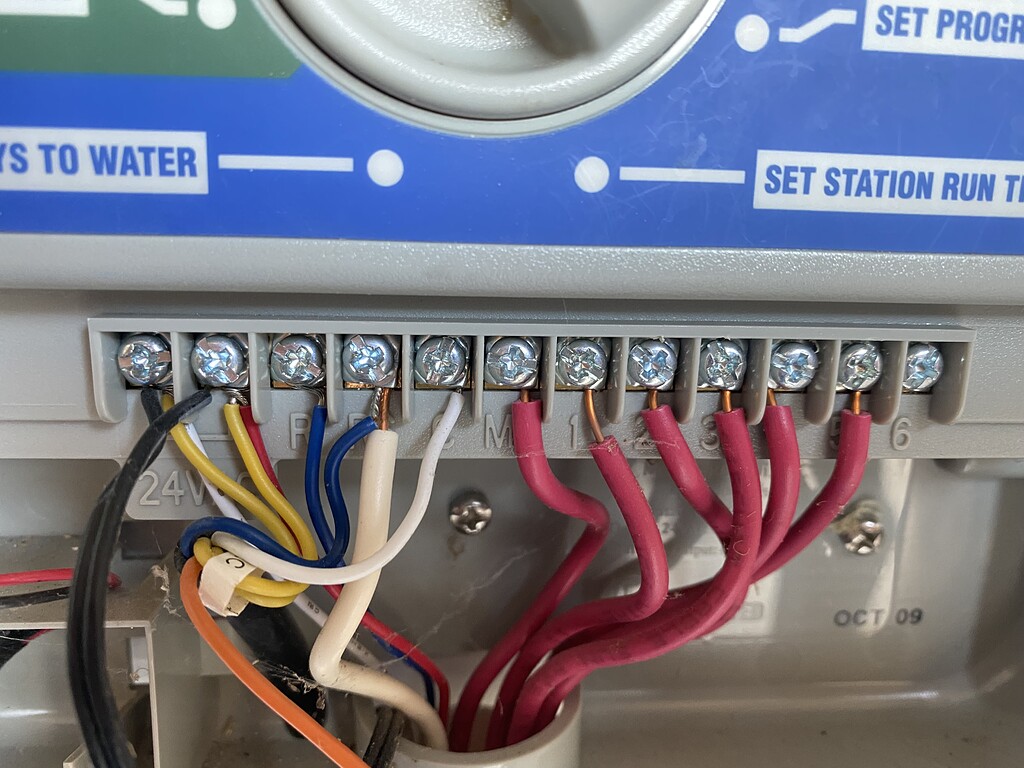

New Rachio 3 wiring not working Troubleshooting Rachio Community. The 3 dirty white wires were moved from C (XCore) to 2 wires in one C and the 3rd wire to the other C (Rachio) The 2 yellow wires at the bottom on the 2nd and 3rd weren't connected to anything the XCore.
